How to export telemetry data to Honeycomb
OpenTelemetry (often abbreviated as OTel) is an open-source observability framework that provides a standardized way to collect and export telemetry data such as traces, metrics and logs. Deno has built-in support for OpenTelemetry, making it easy to instrument your applications without adding external dependencies. This integration works out of the box with observability platforms like Honeycomb.
Honeycomb is an observability platform designed for debugging and understanding complex, modern distributed systems.
In this tutorial, we'll build a simple application and export its telemetry data to Honeycomb. We'll cover:
You can find the complete source code for this tutorial on GitHub.
Set up your chat app Jump to heading
For this tutorial, we'll use a simple chat application to demonstrate how to export telemetry data. You can find the code for the app on GitHub.
Either take a copy of that repository or create a main.ts file and a .env file.
In order to run the app you will need an OpenAI API key. You can get one by
signing up for an account at OpenAI and
creating a new secret key. You can find your API key in the
API keys section of your OpenAI
account. Once you have an API key, set up an OPENAI_API-KEY
environment
variable in your .env
file:
OPENAI_API_KEY=your_openai_api_key
Set up a Docker collector Jump to heading
Next, we'll set up a Docker container to run the OpenTelemetry collector. The collector is responsible for receiving telemetry data from your application and exporting it to Honeycomb.
If you have not already, create a free Honeycomb account and set up an ingest API key.
In the same directory as your main.ts
file, create a Dockerfile
and an
otel-collector.yml
file. The Dockerfile
will be used to build a Docker
image:
FROM otel/opentelemetry-collector:latest
COPY otel-collector.yml /otel-config.yml
CMD ["--config", "/otel-config.yml"]
FROM otel/opentelemetry-collector:latest
- This line specifies the base image
for the container. It uses the official OpenTelemetry Collector image and pulls
the latest version.
COPY otel-collector.yml /otel-config.yml
- This instruction copies our
configuration file named otel-collector.yml
from the local build context into
the container. The file is renamed to /otel-config.yml
inside the container.
CMD ["--config", "/otel-config.yml"]
- This sets the default command that will
run when the container starts. It tells the OpenTelemetry Collector to use the
configuration file we copied in the previous step.
Next, add the following to your otel-collector.yml
file to define how how
telemetry data should be collected and exported to Honeycomb:
receivers:
otlp:
protocols:
grpc:
endpoint: 0.0.0.0:4317
http:
endpoint: 0.0.0.0:4318
exporters:
otlp:
endpoint: "api.honeycomb.io:443"
headers:
x-honeycomb-team: $_HONEYCOMB_API_KEY
processors:
batch:
timeout: 5s
send_batch_size: 5000
service:
pipelines:
logs:
receivers: [otlp]
processors: [batch]
exporters: [otlp]
traces:
receivers: [otlp]
processors: [batch]
exporters: [otlp]
metrics:
receivers: [otlp]
processors: [batch]
exporters: [otlp]
The receivers
section configures how the collector receives data. It sets up
an OTLP (OpenTelemetry Protocol) receiver that listens on two protocols, gRPC
and HTTP
, the 0.0.0.0
address means it will accept data from any source.
The exporters
section defines where the collected data should be sent. It's
configured to send data to Honeycomb's API endpoint at api.honeycomb.io:443
.
The configuration requires an API key for authentication, swap
$_HONEYCOMB_API_KEY
for your actual Honeycomb API key.
The processors
section defines how the data should be processed before export.
It uses batch processing with a timeout of 5 seconds and a maximum batch size of
5000 items.
The service
section ties everything together by defining three pipelines. Each
pipeline is responsible for a different type of telemetry data. The logs
pipeline collects application logs. The traces pipeline is for distributed
tracing data. The metric pipeline is for performance metrics.
Build and run the docker instance to start collecting your telemetry data with the following command:
docker build -t otel-collector . && docker run -p 4317:4317 -p 4318:4318 otel-collector
Generating telemetry data Jump to heading
Now that we have the app and the docker container set up, we can start generating telemetry data. Run your application with these environment variables to send data to the collector:
OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4318 \
OTEL_SERVICE_NAME=chat-app \
OTEL_DENO=true \
deno run --unstable-otel --allow-net --allow-env --env-file --allow-read main.ts
This command:
- Points the OpenTelemetry exporter to your local collector (
localhost:4318
) - Names your service "chat-app" in Honeycomb
- Enables Deno's OpenTelemetry integration
- Runs your application with the necessary permissions
To generate some telemetry data, make a few requests to your running application
in your browser at http://localhost:8000
.
Each request will:
- Generate traces as it flows through your application
- Send logs from your application's console output
- Create metrics about the request performance
- Forward all this data through the collector to Honeycomb
Viewing telemetry data Jump to heading
After making some requests to your application, you'll see three types of data in your Honeycomb.io dashboard:
- Traces - End-to-end request flows through your system
- Logs - Console output and structured log data
- Metrics - Performance and resource utilization data

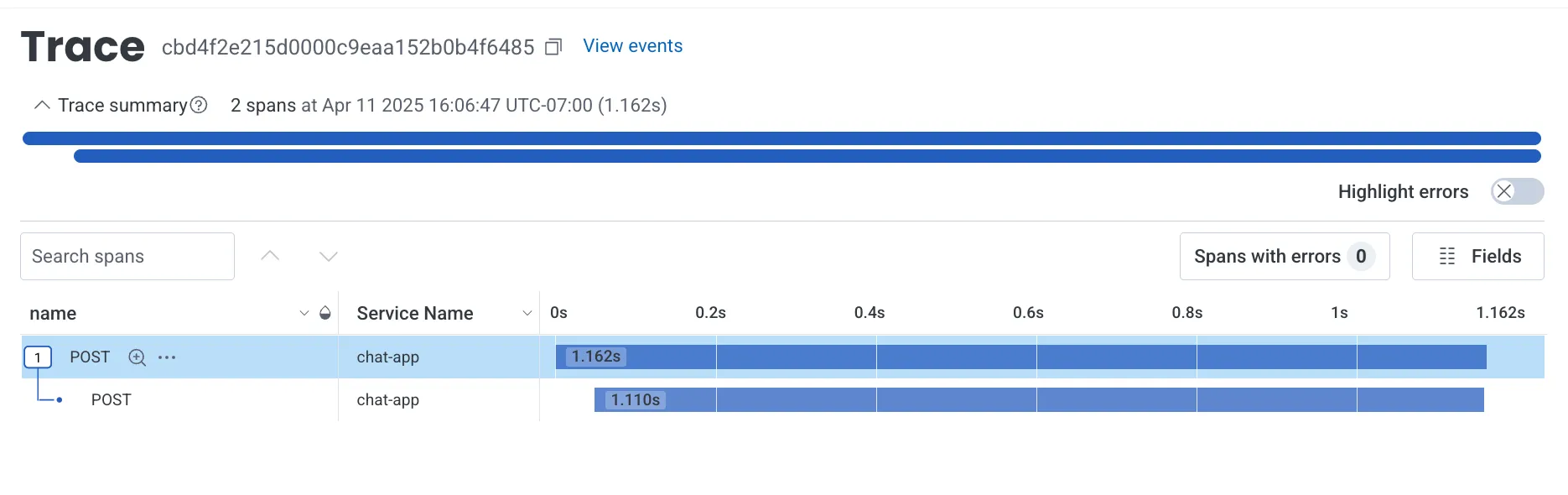

You can drill down into individual spans to debug performance issues:
🦕 Now that you have telemetry export working, you could:
- Add custom spans and attributes to better understand your application
- Set up alerts based on latency or error conditions
- Deploy your application and collector to production using platforms like:
For more details on OpenTelemetry configuration, check out the Honeycomb documentation.
